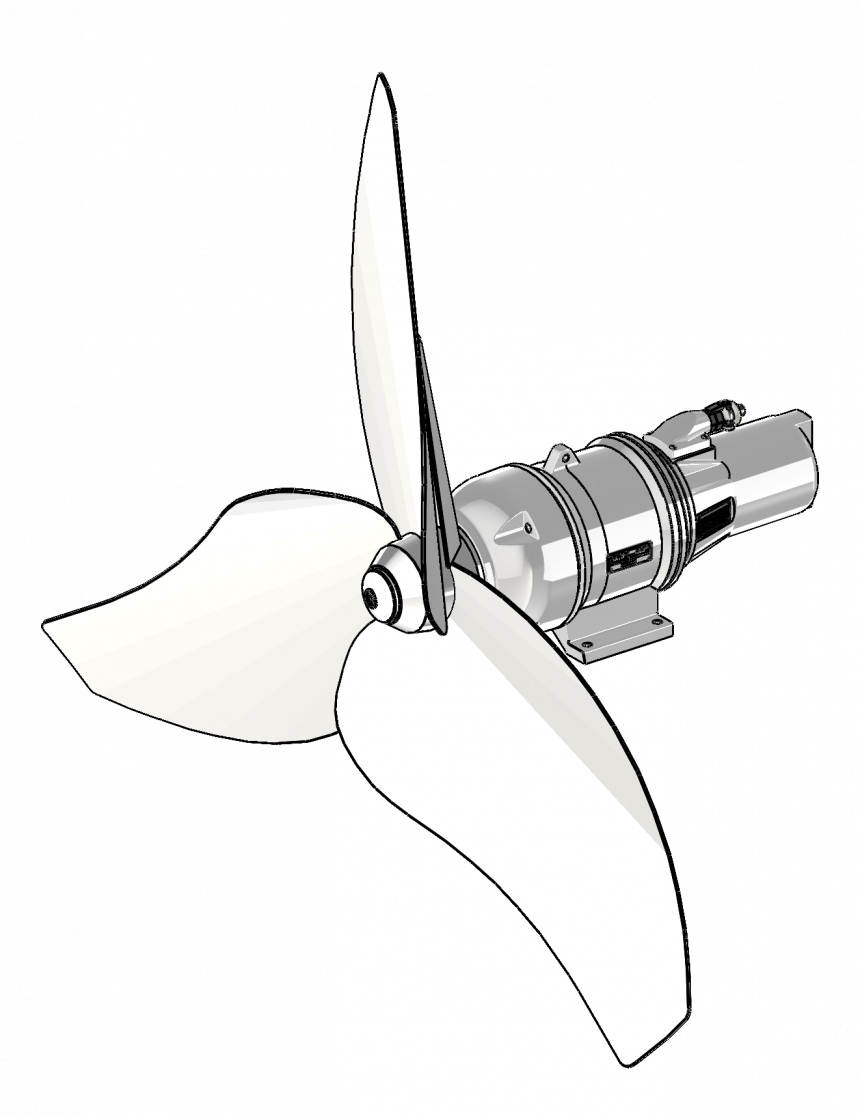

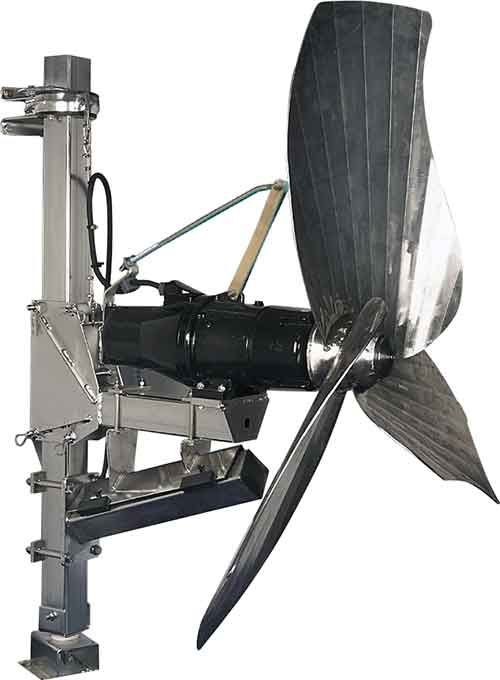

RVPG submersible agitators

Series: R 100- R 132 (X)

With the RVPG agitators, under appropriate conditions, by switching from turbulent to laminar agitation, considerable energy savings can be achieved compared to the OMPG, for example.


  • high-quality three-blade propeller 1.4401(V4A) with up to 2.0 m diameter
  • optimized hydraulic= every propeller blade is brought into shape up to 14 steps
  • Viton seals and different epoxy resin coatings for media down to pH2 possible as option
  • various motors for different voltages, frequencies, insulation classes available
  • agiators available from 1.1 kW (0.50 m³/s nominal flow rate) to 7.5 kW (2 m³/s nominal flow rate with double planetary gearbox at 33/min- 43/min)
    electric motor 1450/min
  • power class 7.5 kW possible in ATEX- version (small additional charge)
  • leakage sensor in the oil bath, double axial ring seal, gearbox can be set to long life (optional)

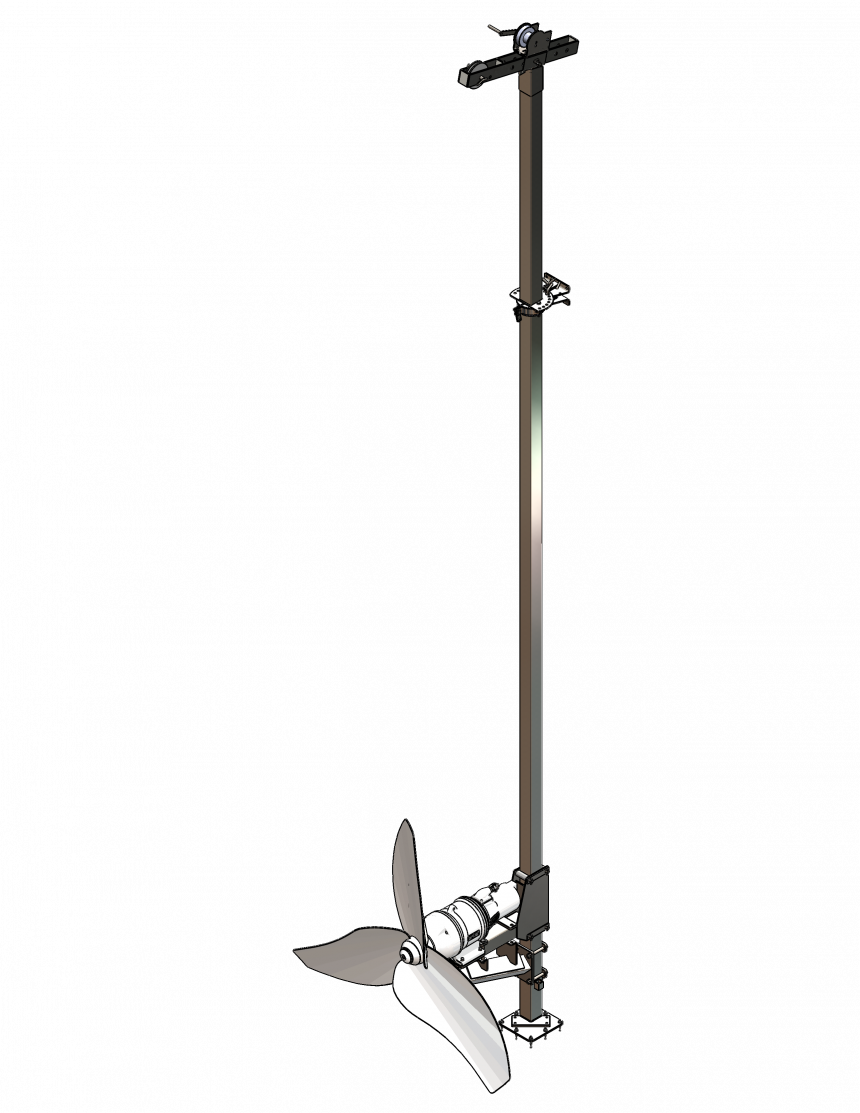

  • generously dimensioned hanging bracket in 1.4401 (V4A)
